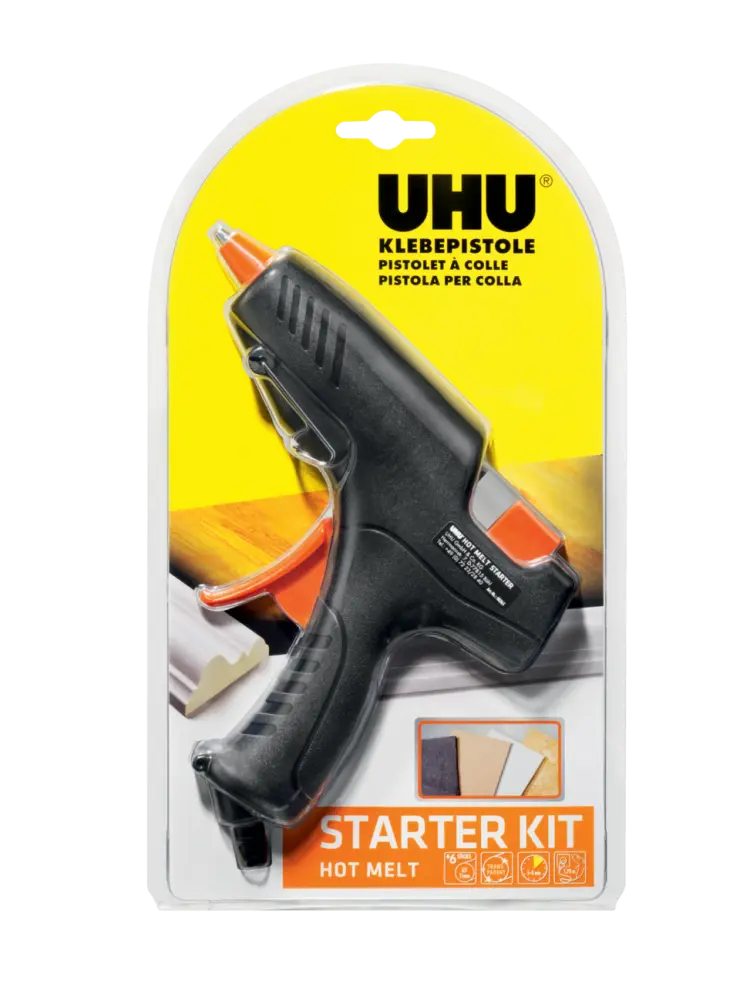

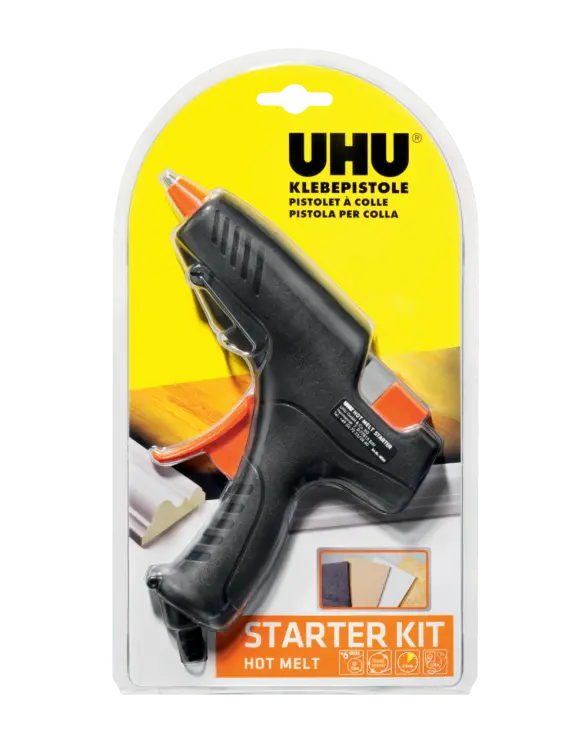

Starter Kit Hot Melt Glue Gun

EAN: 4026700483659Article No.: 48366
Glue Gun for do-it-yourself and semi-professional use.
  • Melting Temperature: 180 °C
  • Flow of glue: 16g/min
  • Power: 55W
  • Strong, fast and simple
  • Transparent
  • Weather resistant
  • Temperature resistant up to +70 °C
  • Does not shrink, does not age
  • Solvent-free
  • Resistant to UV-light
  • Good electrical insulating capacity
  • Crack filling

Properties

  • Melting Temperature: 190 °C
  • Flow of glue: 16g/min
  • Power: 55W
  • Strong, fast and simple
  • Transparent
  • Weather resistant
  • Temperature resistant up to +70 °C
  • Does not shrink, does not age
  • Solvent-free
  • Resistant to UV-light
  • Good electrical insulating capacity
  • Crack filling

Application

Suitable for:

Glues many porous and non porous materials in seconds such as wood, metal, stone, glass, tiles, ceramic, leather, textiles and many plastics. With a high meltig capacity and is suited for DIY and all household repairs. Glues almost all materials quickly, neatly, permanently and reliably. Ideal for fixing, repairing, isolating and sealing. For example carpets, shoe soles and heels, mounting laths, skirting boards or glueing a loose tile. Multifunctional. Especially for do-it-youself and semi-professional use.

Not suitable for:

Not suitable for PE, PP, PTFE, as well as heat sensitive materials. Supporting elements or objects permanently under tension.

Handling

Before use

Working conditions

When using this hot melt glue gun, always follow basic safety precautions. This will reduce the possibility of accidental injury due to burs or electrical shock.

Surface requirements

The areas to be glued must be dry and free of any dust or grease.

During use

Directions For Use

When using this hot melt glue gun, always follow basic safety precautions. Put gun in clamp and plug in the outlet. Insert glue stick Ø 11 mm into glue gun and allow to warm up for 5 - 8 minutes. Squeeze trigger to apply glue on the harder material and do not apply to thinly. Press parts firmly within 15 - 20 seconds. The connection is solid and can be loaded within 2 minute (depending on thickness of glue layer). The final bond strenght is reached after 2 hours. Important: Timely insert a new glue stick behind the old one in order to avoid overheating. Avoid contact with hot nozzle. When gun is not in use for 60 minutes or longer, unplug cord from the outlet. Apply the glue in beads on flexible materials and in beads or dots on hard materials. Larger surfaces are difficult to bond because glue may solidify before applied to entire surface. Bonding strenght is the best when the parts are joined as soon as the glue is applied. After loading a new cartridge, instead allow the gun to heat up again.

Points of attention

This tool must be placed on its stand when not in use. It is for indoor use only. Never leave the glue gun unattended if it is still hot or connected to supply mains. Some materials are heat-sensitve and can be damaged by the hot nozzle or even the hot glue. Never remove glue sticks from glue gun, this could damage the mechanism. Never insert other objects into the glue gun than the recommended glue sticks. Be careful when using the glue gun near to combustible materials. Do not use the glue gun in explosive environments.

After use

Stains/residue

Cured adhesive residue can only be removed mechanically.

Storage conditions

After use, allow glue gun to cool completely prior to storage. When not in use, the glue gun should be stored in dry and secure location out of the reach of children.
